CNC High Speed Plate Drilling Machine GZP
Machine application:
Gantry movable CNC drilling & milling machine, with function of drilling, rigid tapping and milling, can clamp carbide drill inner-cooling or high-speed metal twist drill outer cooling. Mainly used in the processing of flange, heat-exchanger, tube sheet. With high efficiency, precision, easy programming and operation.
This machine as flexible CNC drilling machine, can be adapt to mass production of various work pieces.
Machine configuration:
This equipment is composed of main bed and longitudinal sliding stable gantry, transverse sliding table, the vertical ram drilling power head, working table, auxiliary working table, three jaw hydraulic chuck, chip conveyor, hydraulic system, cooling system, centralized lubrication system, electrical system, pneumatic system etc.
Machine features:

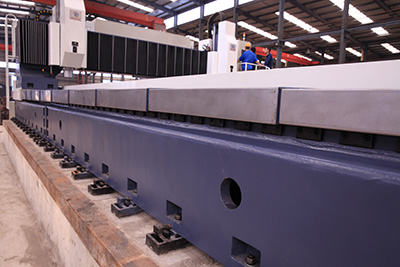

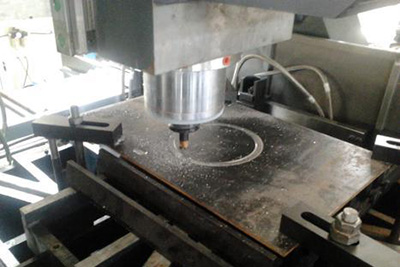

1. This machine is gantry movable drilling machine, reduces bed length and saves space. The lathe bed is steel plate welded, through the weld artificial aging treatment, ensures the stability and accuracy of machine. Reinforced gantry makes rigidity greatly improved, can ensure large cutting parameters. Worktable is equipped with a number of transverse T-slot to clamp the clamping tools and work pieces.

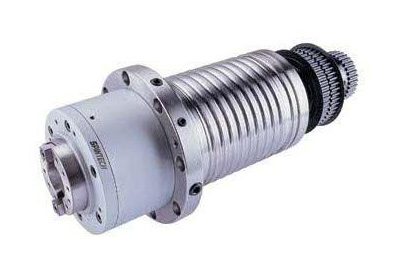

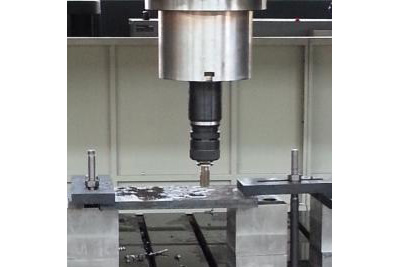

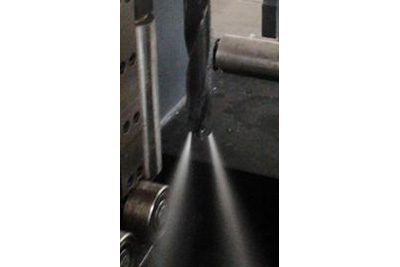

2. Spindle is inner cooling precision BT50, rotation speed is 30-3000r/min.

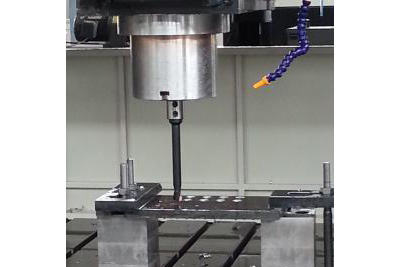

3. With electrical manual pulse generator, setting the feeding position when drilling the first hole, which will speed up the whole procedure of feeding-drilling-back for same diameter hole. It will save much time, improve production efficiency. Besides, it has the following functions: chip breaking, chip removing, pause, protection of broken drill.
4. With optical edge finder, easy to find workpiece position.

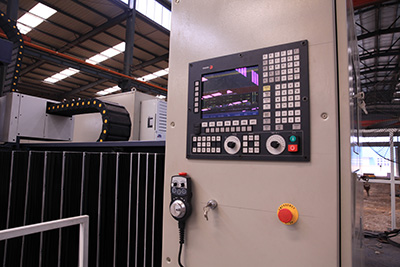

5. SIEMENS 808D CNC system, with RS232 interface and LCD monitor, can fulfill CAD/CAM direct conversion, facilitates programming, restoring, displaying and communication. Operation interface has the functions of man-machine interaction, compensation, automatic alarm. With the function of hole position previewing and re-checking before drilling, very easy operation.
6. Machine components, such as ball screw, linear rolling guide, hydraulic pump, valve, servo motor are world famous brands products.
Parameters list:
| Item | Units | GZP3030 | GZP4040 | GZP5050 | |
|---|---|---|---|---|---|
| Workstable | Workstable size | mm | 3000×3000-24000 | 4000×4000-24000 | 5000×5000-24000 |
| Distance between columns | mm | 4000 | 4900 | 5900 | |
| Max.load capacity | t/m² | 10 | 10 | 10 | |
| T-slot | mm | 28 | 28 | 28 | |
| Vertical ram type drilling head | Quantity | Pcs | 2 standard | 2 standard | 2 standard |
| Taper hole of spindle | BT50 | BT50 | BT50 | ||
| Max. drilling diameter | mm | φ60 | φ60 | φ60 | |
| Drilling depth/diameter | ≤5 (Carbide drill) | ≤5 (Carbide drill) | ≤5 (Carbide drill) | ||
| Spindle rotation speed | r/min | 30—2800standard | 30—2800standard | 30—2800standard | |
| Spindle motor power | kW | 22/33standard | 22/33standard | 22/33standard | |
| Max. spindle torque（n≤600r/min） | Nm | 350standard | 350standard | 350standard | |
| Distance between spindle and Workstable | mm | 300-800standard | 300-800standard | 300-800standard | |
| （X axes）Longitudinal Movement of Gantry | Max.stroke | mm | 3000-24000 | 4000-24000 | 5000-24000 |
| Moving speed of X axis | m/min | 0-10 | 0-10 | 0-10 | |
| servo motor power/torque | kW/Nm | 3/28.4 | 3/28.4 | 3/28.4 | |
| （Y axes）Transverse Movement of Drilling head | Max.stroke | mm | 3000 | 4000 | 5000 |
| Moving speed of Y axis | m/min | 0-10 | 0-10 | 0-10 | |
| servo motor power/torque | kW/Nm | 3/28.4 | 3/28.4 | 3/28.4 | |
| （Z axes）Feeding of Vertical ram | stroke | mm | 500 | 500 | 500 |
| Moving speed of Z axis | m/min | 0-5 | 0-5 | 0-5 | |
| servo motor power/torque | kW/Nm | 3/28.4 | 3/28.4 | 3/28.4 | |
| Positioning precision | X axis | mm | 0.06/2000 | 0.06/2000 | 0.06/2000 |
| 0.03/2000 With optical scale | 0.03/2000 With optical scale | 0.03/2000 With optical scale | |||
| Y axis | mm | 0.08/whole length | 0.08/whole length | 0.08/whole length | |
| 0.04/whole length With optical scale | 0.04/whole length With optical scale | 0.04/whole length With optical scale | |||
| Re-positioning precision | X axis | mm | 0.03/2000 | 0.03/2000 | 0.03/2000 |
| 0.015/2000 With optical scale | 0.015/2000 With optical scale | 0.015/2000 With optical scale | |||
| Y axis | mm | 0.04/whole length | 0.04/whole length | 0.04/whole length | |
| 0.02/whole length With optical scale | 0.02/whole length With optical scale | 0.02/whole length With optical scale | |||
| Hydraulic systerm | Hydraulic pump pressure | MPa | 6.5 | ||
| Hydraulic pump flux | L/min | 25 | |||
| Motor power of pump | kW | 3 | |||
| Swarf cleaner | Type of Swarf cleaner | Plate chain type | |||
| Quantity of swarf cleaner | Pcs | 2 | |||
| Swarf cleaning speed | m/min | 1 | |||
| Motor power | kW | 2X0.75 | |||
| Cooling systerm | Motor power of inner | kW | 2×3 | ||
| Motor power of outer | kW | 0.75 | |||
| Centralized lubrication | Pressure | MPa | 2 | ||
| Oiling quantity | mL | 0.1 | |||
| Electrical systerm | CNC systerm | SIEMENS 828D | |||
| No.of CNC | 6 | ||||
| Total motor power | kW | About 90 | |||
