CNC metal cutting bandsaw DJ1250-Supertime

CNC Metal Cutting Bandsaw DJ1250

Machine application:

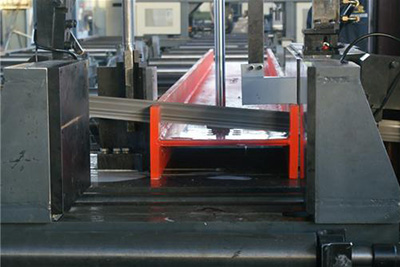

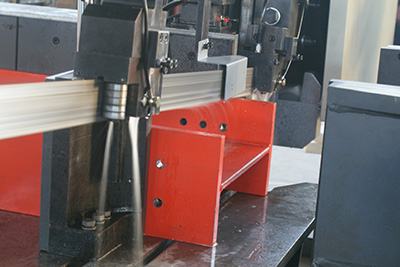

DJ1250 carriage feeding CNC rotation angle band saw machine is mainly used for cutting H beam, channel, box girder, square tube, round steel etc, with advantages of narrow saw blade, saves material, high cutting accuracy, big power, easy operation, real time display of processing parameters, automatic processing and high efficiency.

Machine configuration:

Machine is composed of saw frame, vertical feeding device, vertical pressing device, rotary worktable, hydraulic system, cooling system, CNC feeding carriage etc.

Machine features:

1. Machine can input workpiece parameters in advance by touch screen, machine adjusts cutting process according to parameters; Real time display and monitor of parameters.

2. Saw frame is welded from square tube and steel plate, acquires better rigidity and stability. Saw frame obtains good durability and rigidity in condition of heavy load cutting and tension, saw frame is supported by guide rail, saw frame stress is equal.

3. Saw frame feeding adopts hydraulic servo proportional valve and encoder, realizes numerical feeding, and fast feeding-slow feeding-fast feeding.

4. Automatic adjustment of feeding and cutting speed according to material size and material. Main motor inspection function.

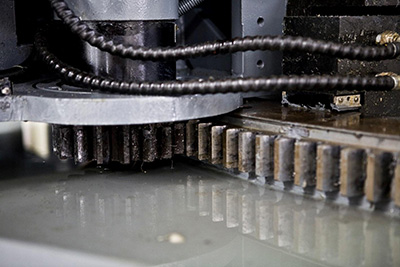

5. Rotary worktable adopts gantry structure, good rigidity and stability, sawing section is smooth.

6. Saw blade adopts hydraulic tension, keeps good tension force during high speed movement, prolongs saw blade longevity, user can adjust pressure according to material size.

7. With saw blade rupture inspection device, machines will stops automatically when breakdown or error occur.

8. Automatic cleaning system on saw frame with rotary steel brush, automatically cleans chips.

9. Machine with spiral chip removal system, chips can be collected in chip conveyor.

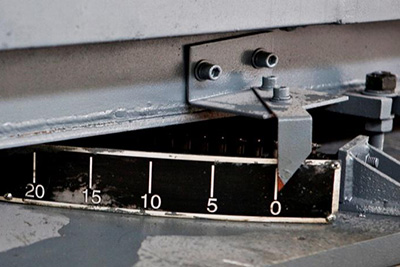

10. 0°～45°rotation degree, material fixes and machine rotates, realizes cutting in any degree within 0°～45°.

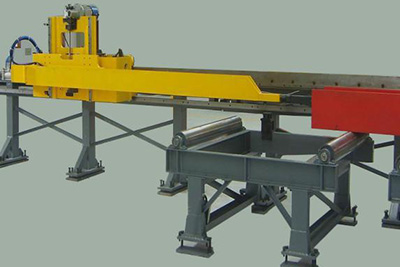

11. CNC carriage feeding device, with photoelectric counter switch, high positioning accuracy.

Parameters list:

Sawing H-beam size ( without rotation)(Web height x flange width)		Max. 1250 mm×600 mm
		Mini 200 mm×75 mm
Saw Blade Size		T:1.6mm W:67mm
Motor Power	Main motor	15kW
	Hydraulic pump	5.5kW
Saw blade linear speed		20～100 m/min
Feeding speed		0-2 m/min software control
Rotation angle		0°～45°
Worktable height		About 800 mm
Overall size (L * W * H)		About 2200x4400x2800 mm
Weight		About 8t
