CNC Metal Cutting Bandsaw DJ1000

CNC Metal Cutting Bandsaw DJ1000

Machine application:

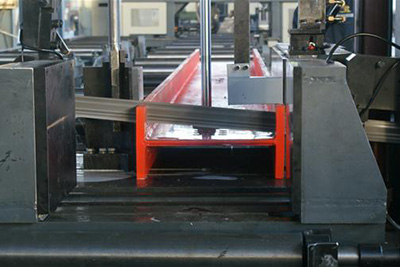

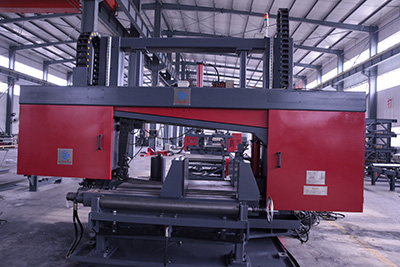

DJ1000 carriage feeding CNC rotation angle band saw machine is mainly used for cutting H beam, channel, box girder, square tube, round steel etc, with advantages of narrow saw blade, saves material, high cutting accuracy, big power, easy operation, real time display of processing parameters, automatic processing and high efficiency.

Machine configuration:

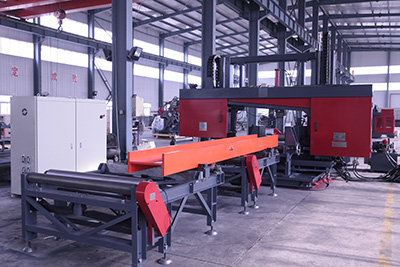

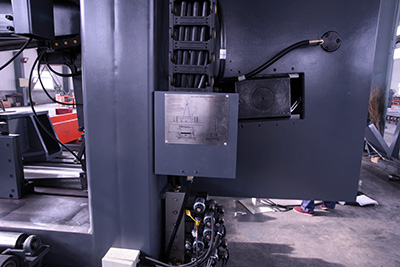

Machine is composed of saw frame, vertical feeding device, vertical pressing device, rotary worktable, hydraulic system, cooling system, CNC feeding carriage etc.

Machine features:

1. Machine can input workpiece parameters in advance by touch screen, machine adjusts cutting process according to parameters; Real time display and monitor of parameters.

2. Saw frame is welded from square tube and steel plate, acquires better rigidity and stability. Saw frame obtains good durability and rigidity in condition of heavy load cutting and tension, saw frame is supported by guide rail, saw frame stress is equal.

3. Saw frame feeding adopts hydraulic servo proportional valve and encoder, realizes numerical feeding, and fast feeding-slow feeding-fast feeding.

4. Automatic adjustment of feeding and cutting speed according to material size and material. Main motor inspection function.

5. Rotary worktable adopts gantry structure, good rigidity and stability, sawing section is smooth.

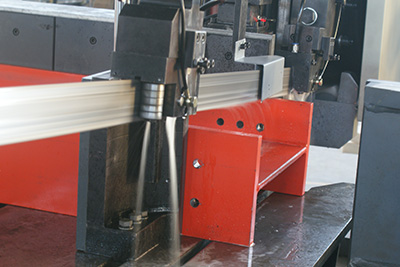

6. Saw blade adopts hydraulic tension, keeps good tension force during high speed movement, prolongs saw blade longevity, user can adjust pressure according to material size.

7. With saw blade rupture inspection device, machines will stops automatically when breakdown or error occur.

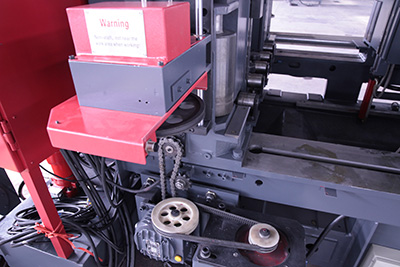

8. Automatic cleaning system on saw frame with rotary steel brush, automatically cleans chips.

9. Machine with spiral chip removal system, chips can be collected in chip conveyor.

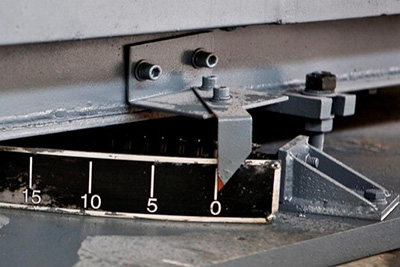

10. 0°~45°rotation degree, material fixes and machine rotates, realizes cutting in any degree within 0°~45°.

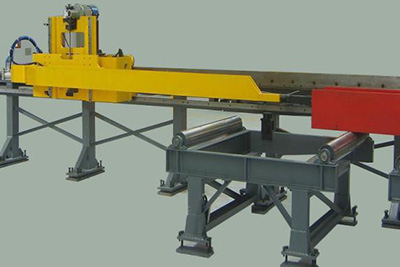

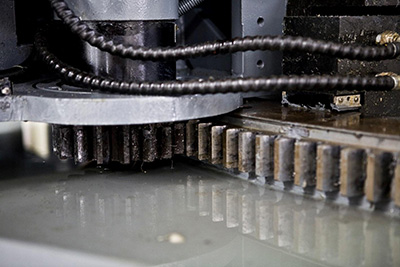

11. CNC carriage feeding device, with photoelectric counter switch, high positioning accuracy.

Parameters list:

H beam size (without rotation) Max. 1000 mm×500 mm
Min. 200 mm×75 mm
Saw blade parameter T:1.6mm W:54mm
Motor power Main motor 11kW
Hydraulic pump 5.5kW
Saw blade linear speed 20~100 m/min
Saw feeding speed program control
Rotation angle range 0°~45°
Worktable height 800 mm
Main clamp hydraulic motor 100ml/r
Front clamp hydraulic motor 100ml/r
Overall size (mm) 4050x2300x2700

CNC carriage feeding parameter:

CNC axis X axis
X axis servo motor power 5.0kW
X axis moving speed 0~15m/min
Max.material weight 8t
