CNC Drilling Machine for Sieve Plate CJSZ
Machine application:

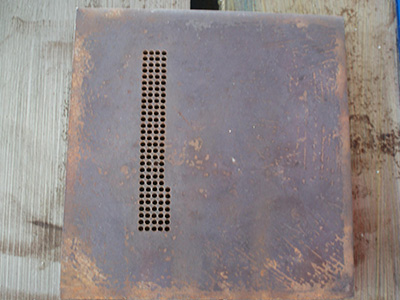

Gantry movable type CNC high speed drilling machine, for flange, heat exchanger, sieve plate drilling process, high efficiency and accuracy, easy programming and maintenance. Suitable for mass production.
Machine configuration:

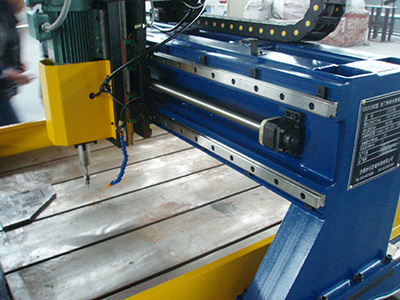

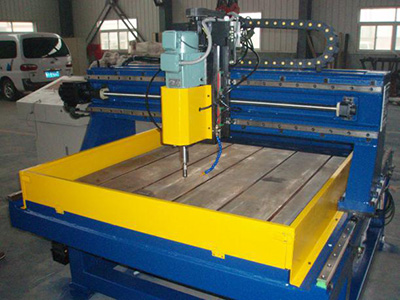

Machine is composed of base, longitudinal slide table, gantry, transverse slide table, vertical drilling head, cooling system, centralized lubrication system, electrical system, pneumatic system etc.
Machine features:
1. Steel plate welded, frame and gantry after optimal design, with good rigidity and accuracy stability.
2. Spindle after treatment and finite element analysis. On worktable center has installation benchmark and location pinhole, convenient for workpiece positioning.
3. Spindle is driven by converter motor, rotation speed is stepless adjustable within 30-3000rpm.
4. CNC system, servo motor, linear guide rail, spindle, are all world famous brands.
5. Direct conversion of CAD/CAM, with error compensation, automatic alarm, man-machine interaction functions.
Parameters list:
| Model | CJSZ1010 | CJSZ1616 | CJSZ2016 | |
|---|---|---|---|---|
| Workpiece | Max.process range (mm) | 1000×1000 | 1600×1600 | 2000×1600 |
| Max.workpiece thickness (mm) | 60 | |||
| Drilling heads | Max.drilling diameter (mm) (common carbide steel) | (φ2-φ15)mm | ||
| Spindle rotation speed (r/min) | 300—3000r/min | |||
| Spindle motor power (kW) | 0.75/3.7 | |||
| Cooling system | Cooling pump 0.25kw | |||
| CNC axis | 3 | |||
| Total power (kW) | 5/8 | |||
| Overall size (L x W x H) (mm) | 1670×1890×1990 | 2270×2490×1990 | 2270×2890×1990 | |
| Net weight (T) | 2.5t | 3t | 3.5t | |
