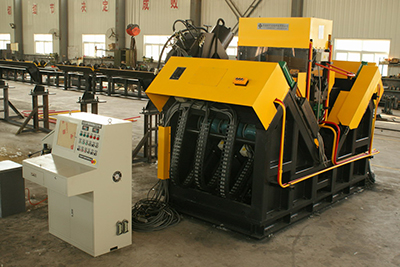

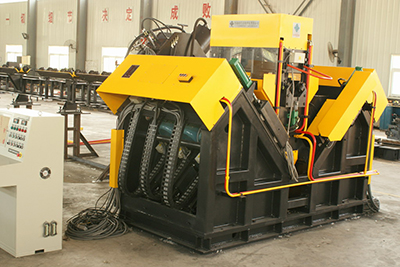

CNC High Speed Angle Drilling Marking Machine JX2532F
Machine application:

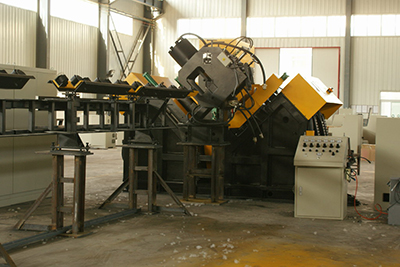

Machine is widely applied in power transmission, steel tower, railway, bridge building, for angle drilling and marking. This is an essential processing equipment in steel tower and steel structure manufacture.
Machine has 9 CNC axis, can realize servo control in gauge line and length directions, with advantages of high accuracy, easy operation etc.
Drilling is adopted in big size angle processing, ensures holes longevity. With marking function forms a high speed angle drilling production line.
Machine features:

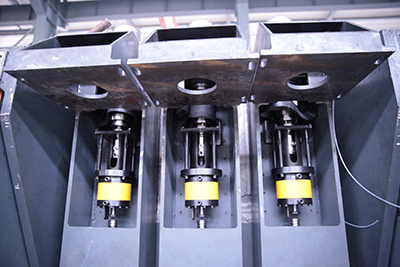

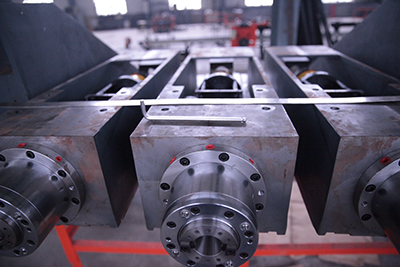

1. Drilling unit with 6 groups of drilling heads, adopts Taiwan inner cooling precision spindle, rotation speed up to 6000rpm, drilling efficiency is greatly improved. Automatic drilling speed control through servo feeding, can drill blind holes and process all holes at one time.
2. Drilling head adopts air-mist cooling, good cooling effect and recycle use of coolant.
3. Easy operation, high automation degree, processing accuracy, suitable for mass production.
4. Independent hydraulic and electrical control systems. Convenient to adjust molds and other machine parts, also has partial decentralized control action.
5. 2 drilling units, on each unit equip with 3 sets of drilling molds.
6. 4 letter groups, can process 4 materials in one nesting.
7. 9 CNC axis, finishes holes distance and two sides 6 types of diameters gauge line adjustment, high accuracy of automatic positioning.
8. Hydraulic, pneumatic, electrical components are world famous brands, reliable for long term usage.
9. High accuracy of holes distance positioning, infeed part with encoder, for actual position feedback and error compensation, forms closed loop control.
| Name | Unit | Values |
|---|---|---|
| Angel size | mm | 140×140×10～250×250×32 |
| Max.drilling capacity | (dia. × thickness) mm | Φ26×32 （Q235/Q345/Q420） |
| Marking force | kN | 1000/1250 |
| Max.angle length | m | 12 |
| Gauge line range | mm | 50-220 |
| Drilling heads quantity on one side | number | 3 |
| Letter groups quantity | group | 4 |
| Letter size | mm | 14×10x19 |
| CNC axis | axis | 9 |
| Max.feeding speed | m/min | 40 |
| Spindle taper | BT40 | |
| Drilling heads max.moving speed | m/min | 10 |
| Drilling heads max.feeding speed | m/min | 5 |
| Spindle max. Rotation speed | r/min | 6000 |
| Overall size | m | 32×7×2.5 |
| Total power | kw | 120 |
Machine advantages:
1. CNC system of angle drilling machine, ensures drilling distance in longitudinal direction, angle 2 sides also adopt CNC, ensures two sides multiple gauge line drilling.
2. Machine frame is vertical box type structure, welded from steel plates, after aging treatment removes welding stress, through 3D modeling and stress analysis, ensures machine good rigidity and processing accuracy.
3. Drilling heads feeding and gauge line directions adopt two linear guide rails, driven by AC servo motor, precision ball screw, realizes drilling head feeding and gauge line adjustment. C type structure, doesn’t deform after long term use. Company adopts roller guide rail in gauge line direction, improves loading capacity and rigidity.
4. Because of big driving slip weight, company improves driving motor from 2.0kW to 4.4kW in gauge line direction, dragging force is bigger, low motor load rate, prolongs motor longevity and working reliability and stability.
5. Machine is suitable for drilling different holes diameters, can drill angle width no more than 250mm, greatly improves processing efficiency in comparison with traditional processing methods.
6. Advanced software program:
A) SUPERTIME independently writes software program.
B) We can update software program according to actual production needs, in order to meet customers’ special demands.
C) Software program can read BOCAD, TEKLA lofting software, now we have developed program to realize connection with LANTEK.
D) This program can realize data exchange with ERP system.
7. Low maintenance cost:
A) Operators follow strictly our demands, low failure rates.
B) All electrical components are world 1-st class brand, easy to find supplier in any city.
C) Consumable parts we provide drawings accordingly, such as punching heads and dies, you can manufacture in own plant.
D) Over 20 years engineer team, responsibility of machine installation, commission and systematic training.
