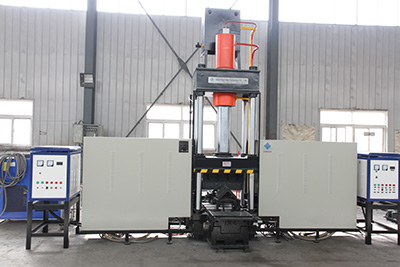

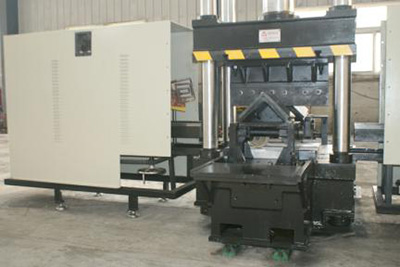

CNC Hydraulic Angle Bending Machine HQJ20
Machine application:
In steel tower structure, double-bending angle, single-bending angle are widely used, traditional manual bending method causes intense labor force, low efficiency and not high accuracy of deformation angle.
Company designs and manufactures CNC hydraulic angle bending machine, with advantages of high accuracy of deformation angle, automatic control of heating temperature, automatic compensation of deformation, this is an essential equipment for angle bending.
Machine features:

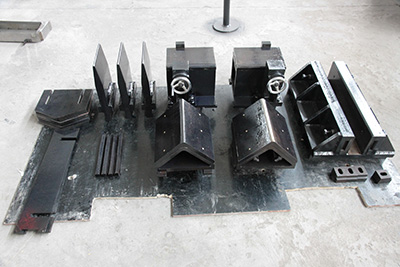

1.For each bending item, up and down mold by 1 set, reduces molds numbers, manual mold change, simple structure;
2.Automatic high frequency heating, quick heating and environmental protection;
3.Numeral control of deformation angle;
4.Man-machine interface control system, easy operation;
5.Hydraulic reliefs fold;
6.Workpiece manual and photoelectric positioning;
7.Induction ring manual change angle;
Parameter list:
| No. | Name | Value |
|---|---|---|
| 1 | Angle size | 63x63x5-200x200x20mm |
| 2 | Max.plate size | 600x14mm |
| 3 | Double bending max.bending angle | 50° |
| 4 | Positive single max.bending angle | 40° |
| 5 | Reverse single max.bending angle | 40° |
| 6 | Plate bending max.bending angle | 150° |
| 7 | Angle heating method | High-frequency heating |
| 8 | Main cylinder max. stroke | 60mm |
| 9 | Main cylinder pressure | 1000kN |
| 10 | Total power | 120kW |
