This equipment is mainly used for steel tower or power transmission industries connection plate punching.

In comparison with traditional press punching machine, Supertime CNC plate punching machine has deeper throat depth, bigger processing range, automatic positioning system, longer usage life of punching mould, low breakdown rate...

Punching and marking functions for plate thickness 5-25mm, punching force is carefully calculated based on the diameter and thickness. 100t, 110t, 120t, or even 200t for selection.

If plate thickness to 35mm, 1 drilling unit can be added, forms CNC plate punching drilling marking machine.

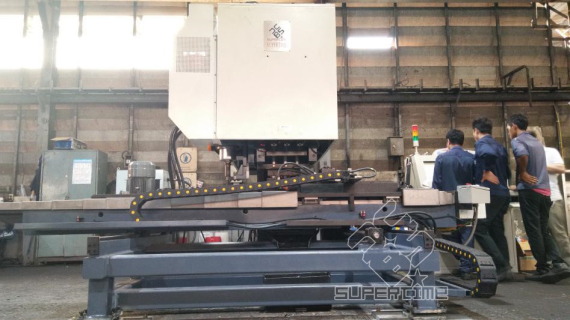

Before delivery, you can come to Supertime for machine inspection. Do you know the key points for testing and inspection?

Key points of testing:

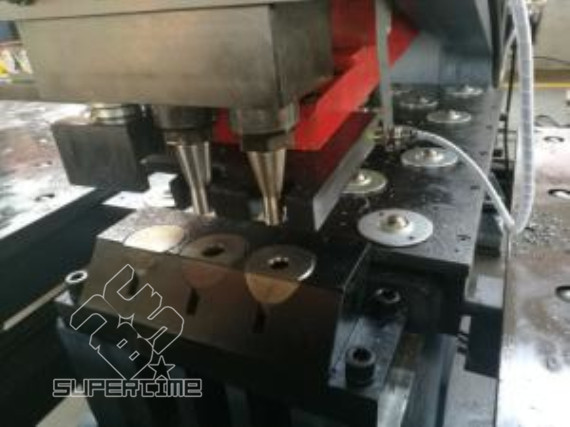

1.Concentricity of up and down mould: It directly affects holes quality and verticality.

2.Pressure plate longevity: because it may deform or crack after long term usage.

3.Platform ball’s longevity: bad quality or unstable installation will drop easily.

4.Pretension force of ball screw: too tight makes motor movement difficult, speeds motor aging; too loose leads to instability of holes distance.

5.Parallelism of roller guides: it affects components longevity.

6.Absolute verticality of X and Y axis: it ensures the plate position and geometric accuracy.
