Customized for angle drilling, equip with the special laser alignment device for plasma cutting function.
This CNC angle drilling with plasma cutting is an high efficient tool for steel tower angle processing, or steel structure, construction, bridge building, boiler etc.
Main parameters:Processes angle size 50*5-250*32mm;
Angle length 12m, or by request;
Angle thickness ≤50mm;
Drilling diameter: φ8-φ35mm;
Spindle rotation speed: 30-2000rpm
Production capacity:Thickness 16mm, diameter φ24mm, 7s/hole, ≥50 holes/h.
Accuracy:Multi-holes accuracy: ±0.5mm;
12m full length accuracy: ±1mm
Main features:1. Drilling head rotation speed to 2000rpm, drilling efficiency is greatly improved. Servo feeding and automatic control of infeed, drilling, rewind speed.
2. Drilling head adopts air-mist cooling, with good cooling effect. Coolant can be recycled. High speed steel blade coated with low cost and high drilling efficiency.
3. Equip with laser alignment device.

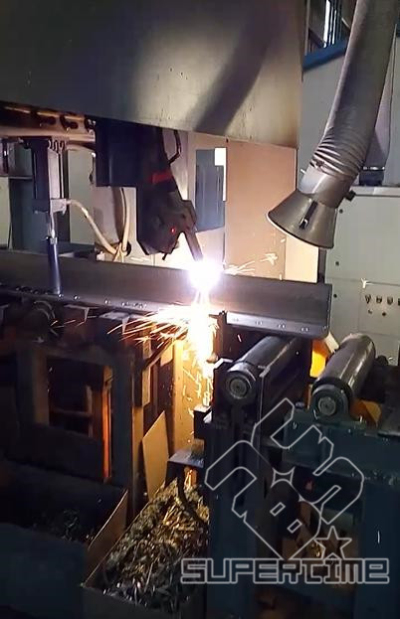

4. Plasma cutting device is composed of a cutting gun, a plasma power supply, a two body oil water separator and a smoke collecting box. Environmental protection.
5. The fault alarm system of the system is comprehensive. It can point out the specific location and possible breakdown reasons.
