In petrochemical industry, boiler and other industries, there is a large number of demand for drilling and processing of pipe plate and flange parts. The GZP series high-speed plane drilling machine designed and manufactured by the NC plane drilling manufacturer can solve the problem of plate drilling, tapping and light milling.

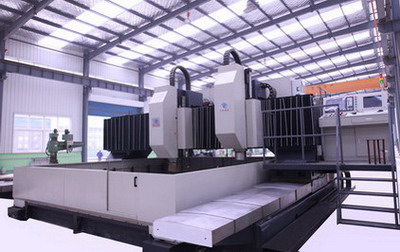

The bed and working table of GZP3535 high-speed plane drilling machine are of split type. The stability of the equipment will not be affected by the change of the foundation. At the same time, it has an isolation effect on the vibration generated in the processing process. It will not directly transfer from the workpiece and working table to the bed and then to the gantry, reducing the possibility of generating vibration superposition or even resonance in some areas. In this way, the plane drilling machine can be improved In addition, the high-speed plane drilling machine adopts BT50 internal cooling rigid precision spindle, which can use carbide internal cooling bit, the spindle speed can reach 6000rpm, and can be equipped with a tool magazine to realize the automatic tool change function, which provides convenience for users who need to process multiple apertures for the same workpiece, and further improves the processing efficiency.
