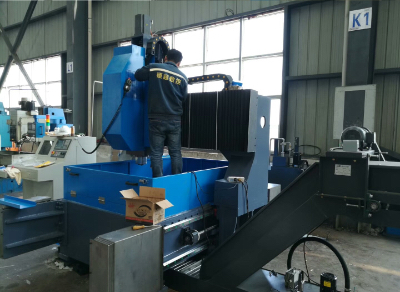

Siemens 808d system is adopted for high-speed CNC drilling and milling machine. Batch debugging steps of this single power head high-speed CNC drilling and milling machine are as follows:

(9) after all the axes move normally, fix the axis limit and reference point switches in the correct position. After all the axes return to the reference point, set the required soft limit and the second soft limit, so that the equipment can move in a safe environment

P36100 first negative soft limit

P36110 first forward soft limit

Second soft limit p36120

P36130 second forward soft limit
