Foundation is very important for machine installation, cut the ground groove, weld anchor bolt beneath foundation board, single stage grouting, leave place for 4 anchor bolts for 2-nd stage grouting. Follow the following detailed steps.

1.Machine frame foundation: should be made of good quality based on our foundation drawing, otherwise, foundation will sink because of shock and vibration.

2.Ground is made of C25 or above concrete of better intensity and strength, feeding conveyor, rotary rack should be fixed by steel plates and expansion bolt.

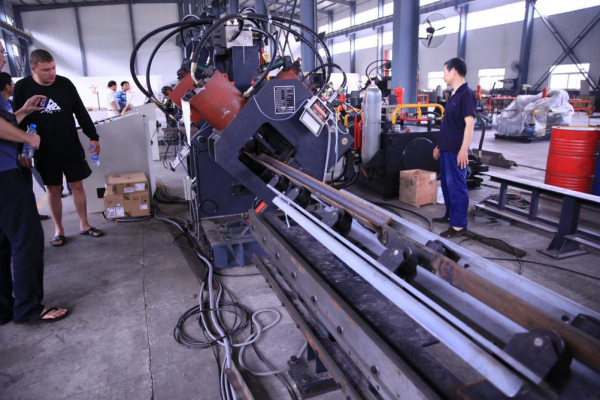

CNC punching machine installation:

1.Use M20x200mm expansion bolt.

2.Fix M20x200mm expansion bolt on 4 corners of foundation board, cut the parts above foundation board, then weld expansion bolts and foundation board together.

3.Make foundation board flat and safe.

4.Check levelness of whole foundation board, levelness is kept within ±3mm.

5.Check machine levelness, levelness is kept within ±3mm.
