PLC input & output monitor:

Can real time monitor external input and output signal condition, press button “pause”, if one place color changes, means this signal is successfully reported to PLC.

PLC output signal on-off testing:

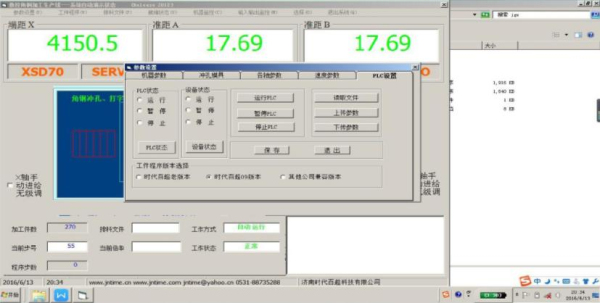

In the parameter setting last page, click “PLC stop”, at this time, all buttons won’t function. Enter the software main menu-machine monitor-PLC monitor, then the following interface can be operated.
